copy of Punção Mod. 016 (HR/TH) 90º

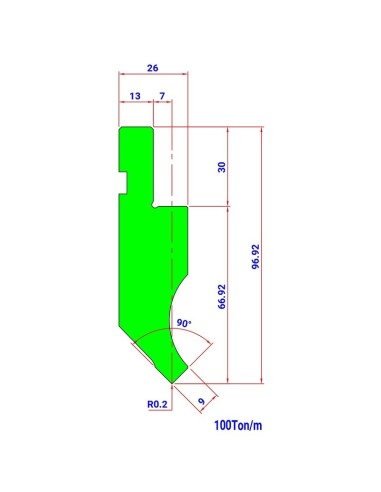

Punção 1010 IH 90º de tipo Europeu, disponível com raio de 0,2 ou 0,8mm, 67 mm de altura e ângulo de 90º.
Punch with standard European tool fixing available in various radii to achieve optimal bending results.
Available in standard lengths of 835mm, 415mm, and 835mm sectioned
Toolspress' Punches are available in the following materials and toughness:
• IH Series – Made from C45 steel, induction hardened in the working area to achieve a hardness of 55 to 58 HRC
• HR Series – Produced from special alloy steel 42CrMo4, quenched and tempered with a general hardness of 23 to 28 HRC and induction hardened in the working area to 55 to 58 HRC.
• TH Series – Manufactured from special alloy steel 42CrMo4, fully hardened with a uniform hardness of 45 to 49 HRC.
• GOLD Series – Available only for selected references. This series features a surface treatment that achieves hardness levels of 800 to 950 HV. Please contact us for additional information!
- Tool type
- Punch
- Height (mm)
- 67
- Angleª
- 90º
- Radius (R)
- 0,2
0,8
