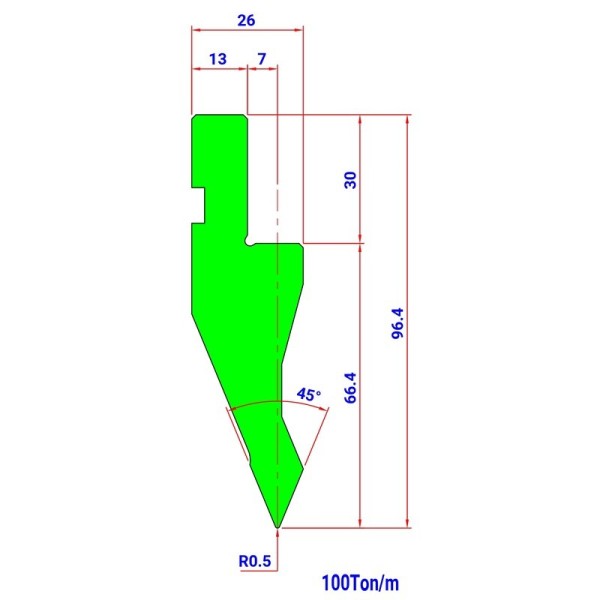

1011 IH Punch

Punção 1011 IH 45º

The 1011 IH Punch features a European-type configuration and is available with a 45° angle. This press brake punch is offered with different radius options, allowing the most suitable configuration to be selected according to the specific requirements of each bending application.

The range of available radii and angles provides greater flexibility in press brake tooling selection. This allows the 1011 IH Punch to be adapted to different bending requirements and the specific characteristics of the workpiece.

The different radius options make it possible to select the appropriate 1011 IH Punch configuration according to the requirements of each bending operation. This flexibility allows the tooling to be selected based on the specific characteristics of the workpiece and the intended bending application.

Raio (R)
Ask a Quote



The different radius options make it possible to select the appropriate 1011 IH Punch configuration according to the requirements of each bending operation. This flexibility allows the tooling to be selected based on the specific characteristics of the workpiece and the intended bending application.

The 1011 IH Punch is therefore suitable for applications where flexibility in radius and angle selection is required, providing a practical tooling option for different press brake bending operations.

You can download the catalogue here: Catálogo ToolsPress

Tool type
Punch
Height (mm)
66
105
Angleª
45º
Radius (R)
0,5
1,5
