2009 IH 88°/85° Press Brake Die

Matriz 2009 IH 88º 85º

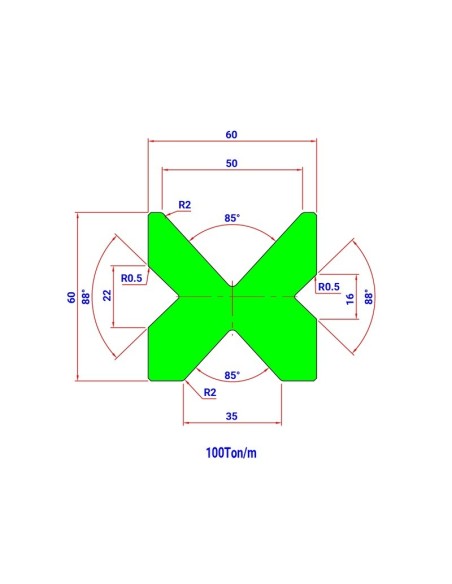

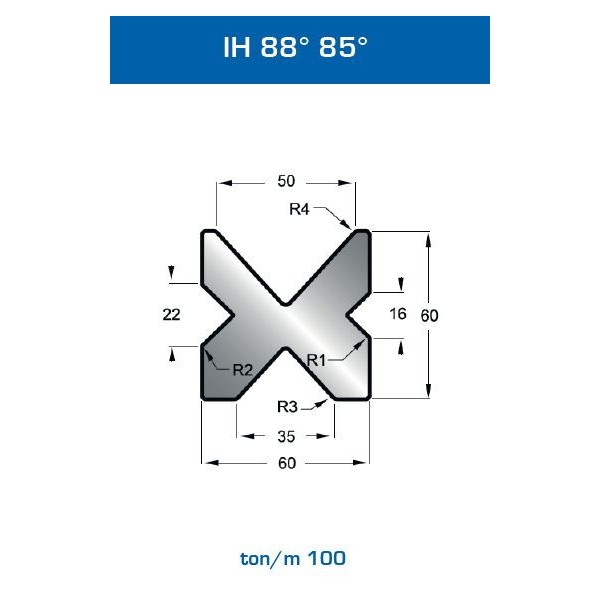

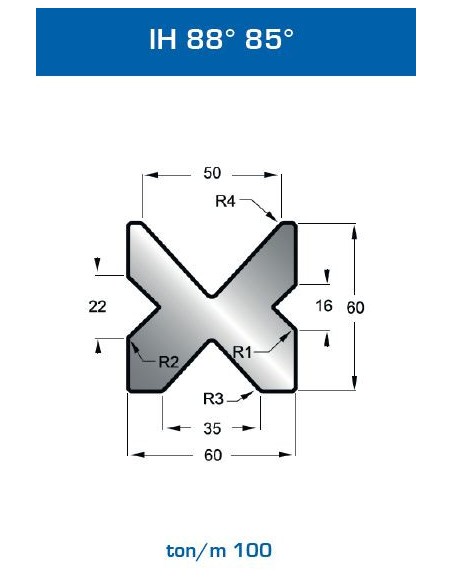

The 2009 IH Press Brake Die features a European-type configuration, with an 88°/85° angle and a 60 mm height. Its geometry incorporates 4 V openings, according to the specified technical configuration, providing a suitable solution for the intended bending application.

The 2009 IH Press Brake Die is available in different standardised lengths, including 835 mm and 415 mm, as well as a segmented 835 mm version. This range of dimensions provides flexibility when selecting the appropriate die configuration according to the dimensional requirements of each project.

With its defined European-type configuration, 88°/85° angle, 60 mm height and 4 V openings, the 2009 IH Press Brake Die offers a specific tooling configuration for press brake applications. The available standardised and segmented lengths allow the die to be selected according to the requirements of the intended bending operation.

Ask a Quote


European-Type Bending Dies

Bending dies with standardised European-type mounting are available with different radii, allowing the appropriate configuration to be selected according to the required bending results.

They are available in standardised lengths of 835 mm and 415 mm, as well as in segmented 835 mm versions.

The Toolspress punches are available in the following materials and hardness specifications:

  • IH Series – manufactured from C45 steel, with induction hardening applied to the working area, achieving a hardness of 55 to 58 HRC.
  • HR Series – manufactured from 42CrMo4 alloy steel, quenched and tempered, with a hardness of 23 to 28 HRC in the body. The working area is induction hardened to achieve a hardness of 55 to 58 HRC.
  • TH Series – manufactured from 42CrMo4 alloy steel, with full-depth hardening and a hardness of 45 to 49 HRC throughout the tool.
  • GOLD Series – available only for selected references. Features a surface treatment that provides hardness levels of 800 to 950 HV.
Tool type
Die
Angleª
88º
