Punção Mod. 1011 (IH) 35º

Punção 1011 IH 35º

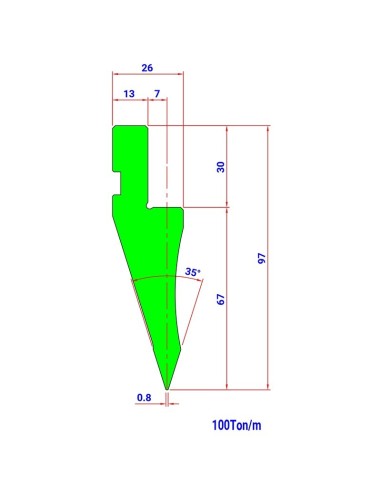

The 1011 IH Punch features a European-style configuration, with an approximate height of 67 mm and is available with a 35° angle. The 1011 IH Punch range includes a 0.8 mm radius, allowing the appropriate configuration to be selected according to the specific requirements of the bending application.

Ask a Quote


Punch with standardized European-style clamping, available with different radii to achieve the best bending results.

Available in standard lengths of 835 mm, 415 mm and 835 mm segmented lengths.

Toolspress punches are available in the following materials and hardness grades:

  • IH Series – made of C45 steel, induction-hardened in the working area to a hardness of 55 to 58 HRC.
  • HR Series – made of special alloy steel 42CrMo4, quenched and tempered to a hardness of 23 to 28 HRC in the tool body, and induction-hardened in the working area to achieve a hardness of 55 to 58 HRC.
  • TH Series – made of special alloy steel 42CrMo4, with full-depth hardening and a hardness of 45 to 49 HRC throughout the entire tool.
Tool type
Punch
Height (mm)
67
Angleª
35º
