Mitutoyo 950-317 Digital Level
The Mitutoyo 950-317 Digital Level is a high-precision measuring tool designed to facilitate the inspection of flatness, perpendicularity and angularity in a wide range of technical applications. Its highly legible display enables fast and accurate readings at any angle, covering 360° (4 × 90°), making it suitable for measurements where precision and clear results are essential.
Featuring an aluminium housing and precision measuring surfaces, the Mitutoyo 950-317 Digital Level combines robustness, stability and ease of use. The orientation arrows on the display facilitate alignment at 0° or 90°, while the measured value hold function allows the measurement result to be fixed when the reading position is difficult or unfavourable.
The Mitutoyo 950-317 allows the zero point to be adjusted in any position, providing greater flexibility during measurements. For height measurements, the rotating display allows the result to be read from below, improving visibility and convenience in different working positions. The Mitutoyo 950-317 Digital Level is suitable for professional applications where precise, reliable and efficient measurements are essential.
The digital display level features a highly legible display for fast and precise readings at any angle within a 360° range (4 × 90°). Its aluminium housing is equipped with precision measuring surfaces, ensuring accurate and reliable measurements.
Orientation arrows on the display facilitate alignment at 0° or 90°, while the value hold function allows the measurement result to be fixed when the reading position is unfavourable. The zero point can be adjusted in any position.

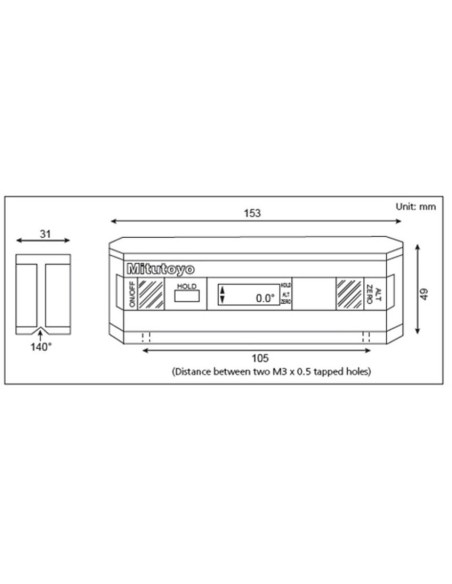

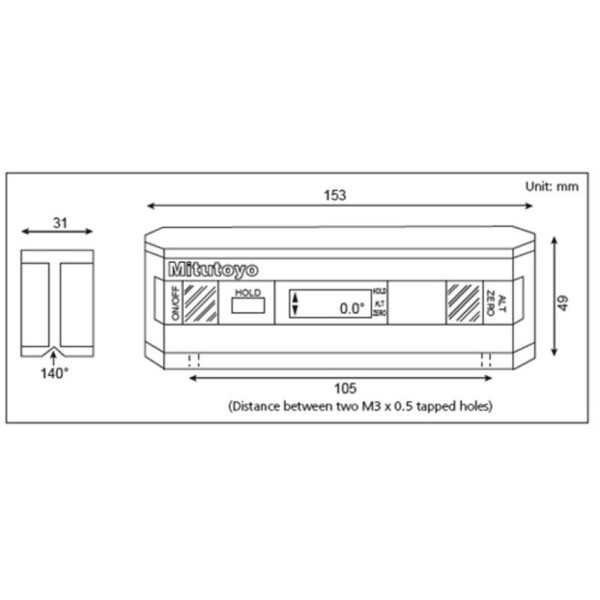

For height measurements, the display rotates to allow readings from below. The distance between the two M3 × 0.5 mm holes on the base is 105 mm. The level is suitable for measuring flatness, perpendicularity and angularity.

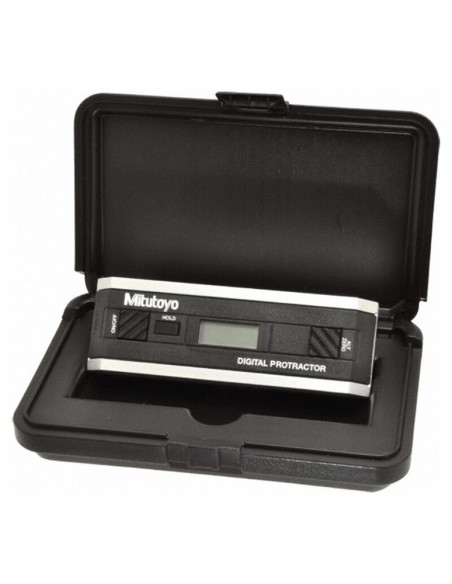

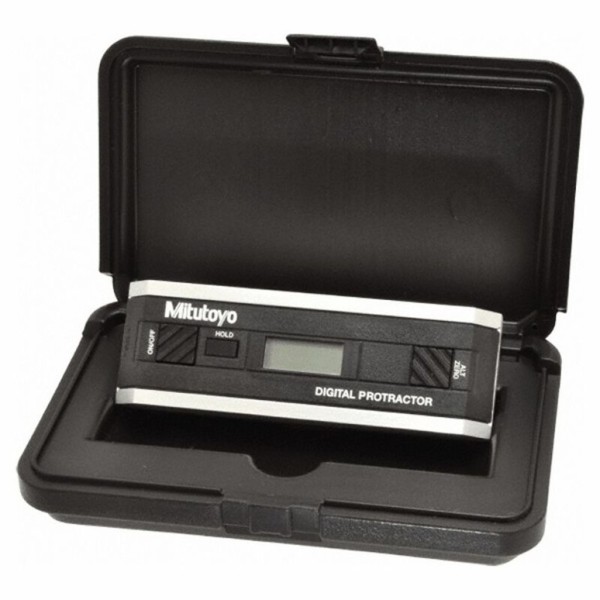

Supplied with a case and one 6LR61 battery (X4 3080).
