1011 IH 60º Punch

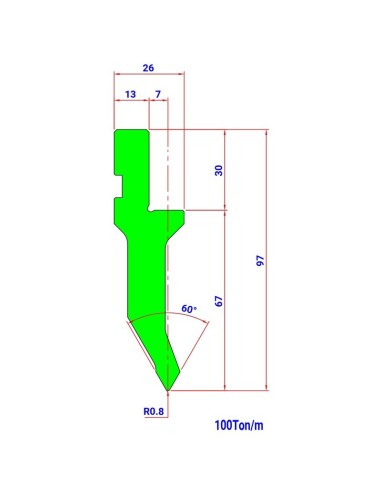

Punção 1011 IH 60º de tipo Europeu, com Raio de 0,8/2mm, 67/66mm de altura e ângulo de 60º.
The 1011 IH Punch features a European-type configuration, with an approximate height of 67/66 mm. It is available in 60° version, providing different options for specific press brake bending applications.
The punch is also available with various radii, allowing the tooling configuration to be selected according to the requirements of the bending operation. This range of angles and radii provides greater flexibility when choosing the appropriate tooling for different applications.
The combination of the European-type configuration, 67/66 mm height, available angles and different radii makes the 1011 IH Punch a versatile solution for professional sheet-metal bending operations.
Punch with standardized European-style clamping, available with different radii to achieve the best bending results.
Available in standard lengths of 835 mm, 415 mm and 835 mm segmented lengths.
Toolspress punches are available in the following materials and hardness grades:
- IH Series – made of C45 steel, induction-hardened in the working area to a hardness of 55 to 58 HRC.
- HR Series – made of special alloy steel 42CrMo4, quenched and tempered to a hardness of 23 to 28 HRC in the tool body, and induction-hardened in the working area to achieve a hardness of 55 to 58 HRC.
- TH Series – made of special alloy steel 42CrMo4, with full-depth hardening and a hardness of 45 to 49 HRC throughout the entire tool.
- Tool type
- Punch
- Height (mm)
- 66
67 - Angleª
- 60º
- Radius (R)
- 0,8
2
